Techniques of paleoclimatology
Paleoclimatologists employ a wide variety of skills to arrive at their theories and conclusions.
Glaciers and ice domes are a widely employed source of data in paleoclimatology. The ice in glaciers has hardened into an identifiable pattern, with each year leaving a distinct layer in an ice core. It is estimated that the polar ice caps have 100,000 of these layers or more. Recent ice coring projects in the ice caps of Greenland and Antarctica have yielded data going back several hundred thousand years -- over 800,000 years in the case of the EPICA project.
- Inside of these layers scientists have found pollen, allowing them to estimate the total amount of plant growth of that year by the pollen count. The thickness of the layer can help to determine the amount of precipitation that year. Certain layers contain ash from volcanic eruptions.
- Air trapped within fallen snow becomes encased in tiny bubbles as the snow is compressed into ice in the glacier under the weight of later years' snow. This trapped air has proven a tremendously valuable source for direct measurement of the composition of air from the time the ice was formed.
- Because evaporation rates of water molecules with slightly heavier isotopes of hydrogen and oxygen are slightly different during warmer and colder periods, changes in the average temperature of the ocean surface are reflected in slightly different ratios between those isotopes. Various cycles in those isotope ratios have been detected.
Dendrochronology is the science of dating wood and wood fossils by their growth rings. Rings from living trees of great age give data about recent centuries back to a few millenia. Older intact wood that has escaped decay can extend the time covered by identifying patterns that match rings of known age from live trees. Petrified tree rings give paleoclimatology data over a much larger stretch of time. The fossil itself is dated with radioactive dating within a wide margin of error. The rings themselves can give some information about rainfall and temperature during that epoch.
Sediment layers have been studied, particularly those in the bottom of lakes and oceans. Characteristics of preserved vegetation, animals, pollen, and isotope ratios provide information. The study of pollens, known as palynology provides evidence of the abundance of different plant species, a proxy indicator of climate.
Sedimentary rock layers provide a more compressed view of climate, as the layers of sedimentary rocks span hundreds of thousands to millions of years. Scientists can get a grasp of long term climate by studying sedimentary rock going back billions of years. The division of earth history into separate periods is largely based on visible changes in sedimentary rock layers that demarcate major changes in conditions. Often these include major shifts in climate.
Some of the mile stones that mark the history of the planet are as follows (Ma = Millions of years ago):
|4,000 Ma||earliest biogenic carbon|
|3,800 Ma||banded iron formations (with reduced iron)|
|3,700 Ma||oldest rocks|
|3,500 Ma||oldest stromatolites|
|3,500 Ma||first evidence of sex [ref. Origins of Sex : Three Billion Years of Genetic Recombination]|
|3,450 Ma||earliest bacteria|
|3,000 Ma||earliest precambrian ice ages [need ref]|
|[?]||Chuos Tillites of South-West Africa|
|[?]||Sturtian Tillites of the Finders Range, South-central Australia|
|3,000 Ma||earliest photosynthetic bacteria|
|2,700 Ma||oldest chemical evidence of complex cells|
|2,300 Ma||first green algae (eukaryotes)|
|2,000 Ma||free oxygen in the atmosphere|
|2,000 Ma to 1600 Ma||Gowganda tillites in the Canadian shield|
|1,700 Ma||end of the banded iron formations and red beds become abundant (non-reducing atmosphere)|
|700 Ma||first metazoans late Proterozoic (Ediacaran Epoch) - first skeletons|
|570 Ma to present||Phanerozoic Eon [history of the phanerozoic goes in here]|
|100 Ma||development of the angiosperms (flowering plants)|
|2 Ma to present||modern world and man's appearance on earth [whole history of man goes in here about 1/2000th of the time scale]|
|0.01 Ma||end of the last ice age|
|0.001 Ma||warming trend of the middle ages|
|0.0001 Ma||end of the mini ice age|
|0.00022 Ma to present||industrialized human world.|
- Periodic Ice ages
- Snowball Earth/Varangian glaciation (Hadean and Paleoproterozoic)
- Permian-Triassic extinction event (Permian-Triassic)
- Paleocene-Eocene Thermal Maximum (Paleocene-Eocene)
- Younger Dryas/The Big Freeze (~11 000 BCE)
- Holocene climatic optimum (~7000 BCE-3000 BCE)
- Climate changes of 535-536 (535-536)
- Medieval warm period (900-1300)
- Little ice age (1300-1800)
- Year Without a Summer (1816)
History of the atmosphere
The earliest atmosphere of the Earth was probably stripped away by solar winds early in the history of the planet. These gases were later replaced by an atmosphere derived from outgassing from the Earth. Sometime during the late Archean Era an oxygen atmosphere began to develop from photosynthesizing algae.
Carbon dioxide and free oxygen
Free oxygen did not exist until about 1,700 Ma and this can be seen with the development of the red beds and the end of the banded iron formations. This signifies a shift from a reducing atmosphere to an oxidising atmosphere. The early atmosphere and hydrosphere (up until about 2,000 Ma) were devoid of free Oxygen. After photosynthesis developed, photoautotrophs began releasing O2.
The very early atmosphere of the earth contained mostly carbon dioxide (CO2) : about 80%. This gradually dropped to about 20% by 3,500 Ma. This coincides with the development of the first bacteria about 3,500 Ma. By the time of the development of photosynthesis (2,700 Ma), CO2 levels in the atmosphere were in the range of 15%. During the period from about 2,700 Ma to about 2,000 Ma, photosynthesis dropped the CO2 concentrations from about 15% to about 8%. By about 2,000 Ma free O2 was beginning to accumulate. This gradual reduction in CO2 levels continued to about 600 Ma at which point CO2 levels were below 1% and O2 levels had risen to more than 15%. 600Ma corresponds to the end of the Precambrian and the beginning of the Cambrian, the end of the cryptozoic and the beginning of the Phanerozic, and the beginning of oxygen-breathing life.
The climate of the late Precambrian was typically cold with glaciation spreading over much of the earth. At this time the continents were bunched up in a supercontinent called Rodinia. Massive deposits of tillites are found and anomalous isotopic signatures are found which are consistent with the idea that the earth at this time was a massive snowball. Map of Rodinia at the end of the Precambrian after Australia and Antarctica rotated away from the southern hemisphere.
As the Proterozoic Eon drew to a close, the Earth started to warm up. By the dawn of the Cambrian and the Phanerozoic Eon, Earth was experiencing average global temperatures of about +22 °C. Hundreds of millions of years of ice were replaced with the balmy tropical seas of the Cambrian Period within which life exploded at a rate never seen before or after.

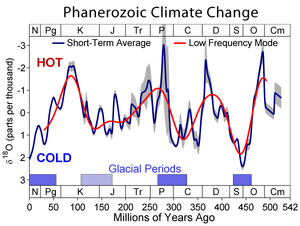

Qualitatively, the Earth's climate was varied between conditions that support large-scale continental glaciation and those which are extensively tropical and lack permanent ice caps even at the poles. The time scale for this variation is roughly 140 million years and may be related to Earth's motion into and out of galactic spiral arms (Veizer and Shaviv 2003). The difference in global mean temperatures between a fully glacial earth and ice free Earth is estimated at approximately 10 °C, though far larger changes would be observed at high latitudes and smaller ones at low latitudes. One key requirement for the development of large scale ice sheets is the arrangement of continental land masses at or near the poles. With plate tectonics constantly rearranging the continents, it can also shape long-term climate evolution. However, the presence of land masses at the poles is not sufficient to guarantee glaciations. Evidence exists of past warm periods in Earth's climate when polar land masses similar to Antarctica were home to deciduous forests rather than ice sheets.

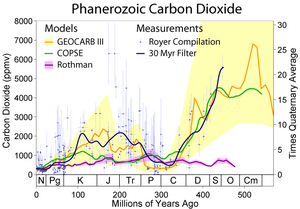

Changes in the atmosphere may also exert an important influence over climate change. The establishment of CO2-consuming (and oxygen-producing) photosythesizing organisms in the Precambrian led to the production of an atmosphere much like today's, though for most of this period it was much higher in CO2 than today. Similarly, the Earth's average temperature was also frequently higher than at present, though it has been argued that over very long time scales climate is largely decoupled from carbon dioxide variations (Veizer et al. 2000). Or more specifically that changing continental configurations and mountain building probably have a larger impact on climate than carbon dioxide. Others dispute this, and suggest that the variations of temperature in response to carbon dioxide changes have been underestimated (Royer et al. 2004). However, it is clear that the preindustrial atmosphere with only 280 ppm CO2 is not far from the lowest ever occurring since the rise of macroscopic life.
Superimposed on the long-term evolution between hot and cold climates have been many short-term fluctuations in climate similar to, and sometimes more severe than, the varying glacial and interglacial states of the present ice age. Some of the most severe fluctuations, such as the Paleocene-Eocene Thermal Maximum, may be related to rapid increases in atmospheric carbon dioxide due to the collapse of natural methane reservoirs in the oceans (see methane clathrates). Severe climate changes also seem to have occurred during the course of the Cretaceous-Tertiary, Permian-Triassic, and Ordovician-Silurian extinction events; however, it is unclear to what degree these changes caused the extinctions rather than merely responding to other processes that may have been more directly responsible for the extinctions.
Geologically short-term (<120,000 year) temperatures are believed to be driven by orbital factors (see Milankovitch cycles). The arrangements of land masses on the Earth's surface are believed to reinforce these orbital forcing effects.
Continental drift obviously affects the thermohaline circulation, which transfers heat between the equatorial regions and the poles, as does the extent of polar ice coverage.
The timing of ice ages throughout geologic history is in part controlled by the position of the continental plates on the surface of the Earth. When landmasses are concentrated near the polar regions, there is an increased chance for snow and ice to accumulate. Small changes in solar energy can tip the balance between summers in which the winter snow mass completely melts and summers in which the winter snow persists until the following winter. See the web site Paleomap Project for images of the polar landmass distributions through time.
Comparisons of plate tectonic continent reconstructions and paleoclimatic studies show that the Milankovitch cycles have the greatest effect during geologic eras when landmasses have been concentrated in polar regions, as is the case today. Today, Greenland, Antarctica, and the northern portions of Europe, Asia, and North America are situated such that a minor change in solar energy will tip the balance between year-round snow/ice preservation and complete summer melting. The presence of snow and ice is a well-understood positive feedback mechanism for climate. The Earth today is considered to be prone to ice age glaciations.
Another proposed factor in long term temperature change is the Uplift-Weathering Hypothesis, first put forward by T. C. Chamberlin in 1899 and later independently proposed in 1988 by Maureen Raymo and colleagues, where upthrusting mountain ranges expose minerals to weathering resulting in their chemical conversion to carbonates thereby removing CO2 from the atmosphere and cooling the earth. Others have proposed similar effects due to changes in average water table levels and consequent changes in sub-surface biological activity and PH levels.
Over the very long term the energy output of the sun has gradually increased, on the order of 5% per billion (109) years, and will continue to do so until it reaches the end of its current phase of stellar evolution.
- Geologic temperature record
- Historical climatology, the study of climate over human history (as opposed to earth's)
- Cliwoc, Climatological database for the world's oceans (1759-1854)
- Bradley, Raymond S. (1985.) Quaternary paleoclimatology : methods of paleoclimatic reconstruction (Boston: Allen & Unwin) ISBN 0-04-551067-9, ISBN 0-04-551068-7.
- Imbrie, John. (1986) Ice ages : solving the mystery (Cambridge, Massachusetts: Harvard University Press, 1986, c1979).
- Margulis, Lynn, and Dorion Sagan. (c1986) Origins of sex: three billion years of genetic recombination (New Haven : Yale University Press) Series : The Bio-origins series; ISBN 0-300-03340-0.
- Gould, Stephen Jay. (c1989) Wonderful life, the story of the Burgess Shale (New York: W.W. Norton) ISBN 0-393-02705-8.
- Crowley, Thomas J., and North, Gerald R. (1996) Paleoclimatology (Oxford, UK: Clarendon Press) Series : Oxford monographs on geology and geophysics no. 18; ISBN 0-19-510533-8.
- Veizer, J., Godderis, Y. and François, L.M. (2000) "Evidence for decoupling of atmospheric CO2 and global climate during the Phanerozoic eon", in Nature, volume 408, pages 698-701.
- Shaviv, N. and Veizer, J. (2003) "Celestial driver of Phanerozoic climate?", in GSA Today July 2003, volume 13, number 7, pages 4-10. <http://www.gsajournals.org/gsaonline/?request=get-document&issn=1052-5173&volume=013&issue=07&page=0004>
- Royer, Dana L. and Robert A. Berner, Isabel P. Montañez, Neil J. Tabor, David J. Beerling (2004) "CO2 as a primary driver of Phanerozoic climate", in GSA Today July 2004, volume 14, number 3, pages 4-10. <http://www.gsajournals.org/gsaonline/?request=get-document&issn=1052-5173&volume=014&issue=03&page=0004>
- A Brief Introduction to History of Climate, an excellent overview by Prof. Richard A Muller of UC Berkley.
- NOAA Paleoclimatology
- AGU Paleoclimatology and climate system dynamics
- Paleoclimatology in the 21st Century
- Environmental Literacy Council
- Climate change and Palaeoclimatology News Archive
- The Uplift-Weathering Hypothesis
- NASA's GISS paleoclimate site
- CalPal - Cologne Radiocarbon Calibration & Paleoclimate Research Package
